Tungsten Carbide Bushing with HRA92 Hardness Thin-Wall Design and High Corrosion Resistance for Wear Applications

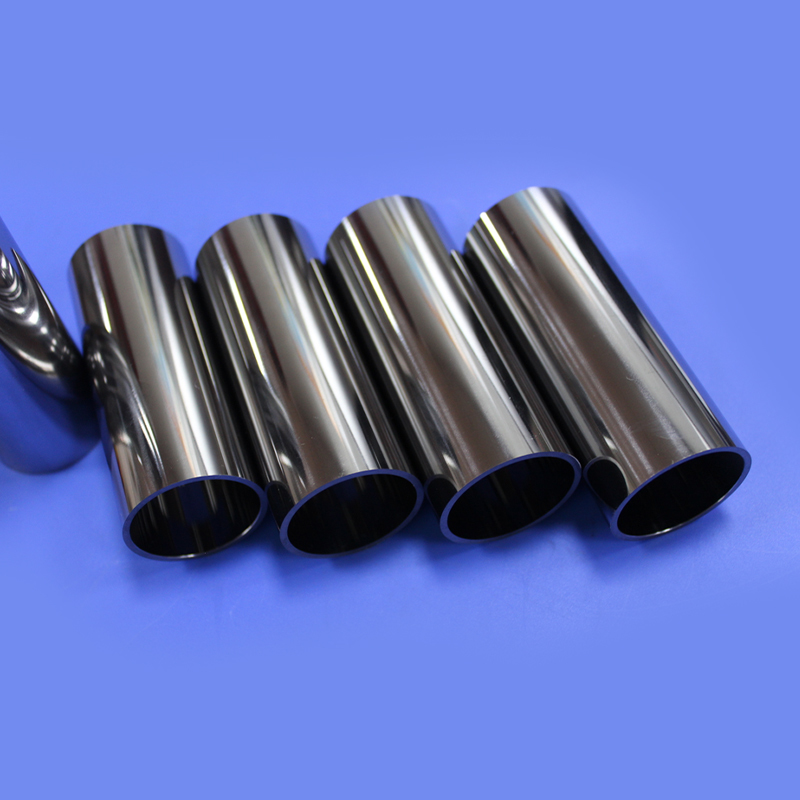

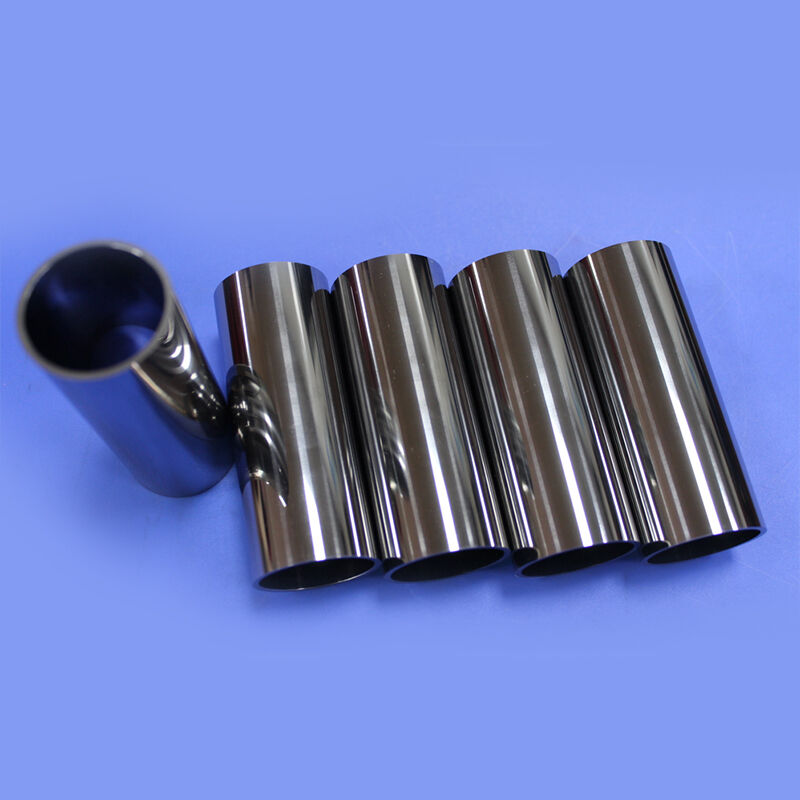

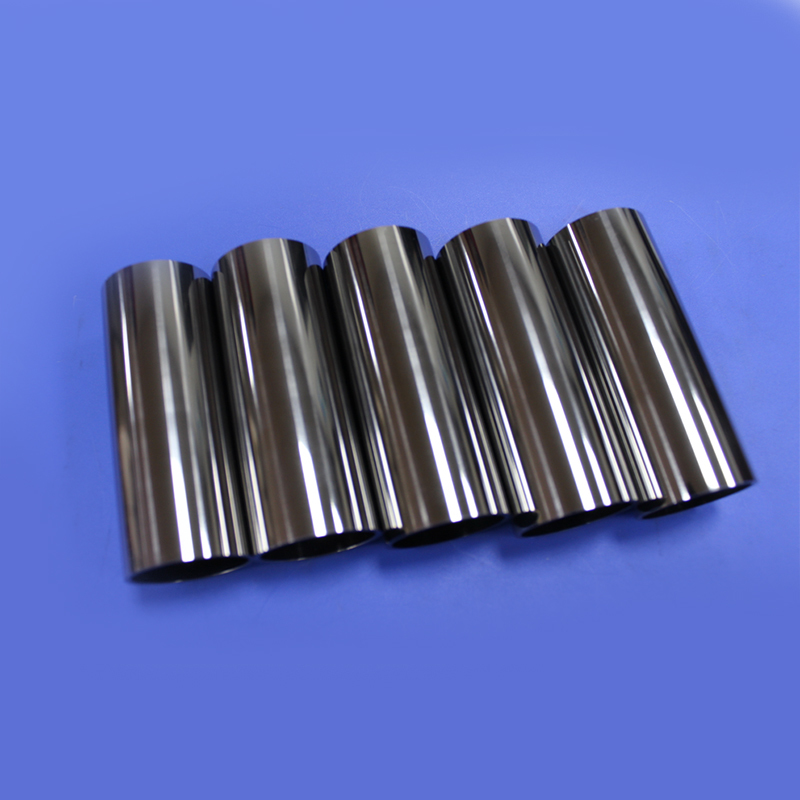

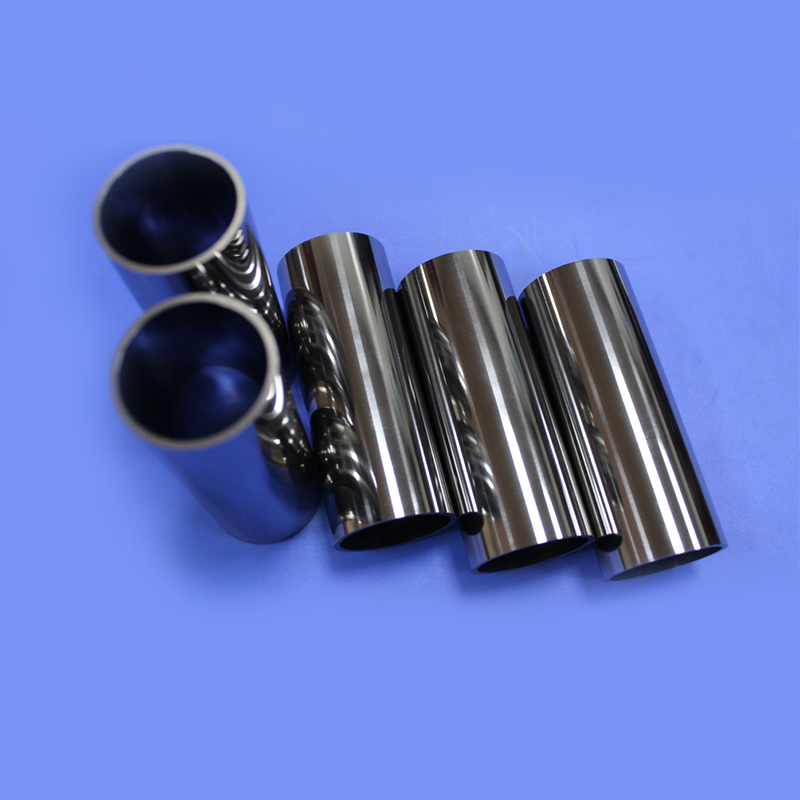

Tungsten Carbide Bushing with HRA92 Hardness Thin-Wall Design and High Corrosion Resistance for Wear Applications Tungsten Carbide Bushing with HRA92 Hardness Thin-Wall Design and High Corrosion Resistance for Wear Applications Tungsten Carbide Bushing with HRA92 Hardness Thin-Wall Design and High Corrosion Resistance for Wear Applications Tungsten Carbide Bushing with HRA92 Hardness Thin-Wall Design and High Corrosion Resistance for Wear Applications

Tungsten Carbide Bushing with HRA92 Hardness Thin-Wall Design and High Corrosion Resistance for Wear Applications

جزئیات محصول:
محل منبع: چین
نام تجاری: Sanxin
گواهی: ISO9001
شماره مدل: SX-2254
پرداخت:
مقدار حداقل تعداد سفارش: 1 عدد
قیمت: قابل مذاکره
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 10000 عدد در ماه
اکنون تماس بگیرید
  • اطلاعات تکمیلی
  • توضیحات محصول

اطلاعات تکمیلی
دمای خاموش کردن: 1400 - 1600 درجه سانتیگراد طول عمر: طولانی
مقاومت در برابر خوردگی: بالا اندازه دانه: زیر میکرون تا چند میکرون
طراحی: سفارشی ماده بایندر: کبالت یا نیکل
خدمات: OEM&ODM سختی بالا: HRA92
استحکام کششی: 1900 مگاپاسکال روش پردازش: پخت

توضیحات محصول

Tungsten Carbide Thin-Wall Bushing
Product Overview

Tungsten Carbide Thin-Wall Bushings are high-performance cylindrical wear-resistant components manufactured through advanced powder metallurgy technology. Composed of tungsten carbide (WC) as the hard phase and cobalt (Co) or nickel (Ni) as the binder phase, these bushings are produced via pressing and high-temperature sintering processes.

Widely used in petroleum machinery, pumps, bearing housings, and various rotating mechanisms, these bushings serve critical functions including shaft support and protection, wear reduction, sealing, and precision guidance. The thin-wall design addresses both lightweight requirements and durability under demanding operating conditions, making them ideal for applications with limited installation space or where weight sensitivity is a concern.

Key Performance Advantages
Superior Hardness and Wear Resistance

Tungsten carbide thin-wall bushings typically achieve a Rockwell hardness (HRA) of 89 to 93, far exceeding conventional steel or bronze bushings. In harsh environments involving particulate-laden media or slurries, their wear rate is extremely low, delivering a service life that is several times to more than ten times longer than tool steel bushings, significantly reducing equipment downtime for maintenance.

Excellent Corrosion and High-Temperature Resistance

Tungsten carbide materials possess exceptional chemical stability, maintaining consistent performance in a wide range of corrosive media including alkalis, alcohols, ethers, acids, oils, and seawater. Even at elevated temperatures up to 500°C, the hardness remains essentially unchanged; at 1000°C, the material still retains relatively high hardness levels, making it suitable for high-temperature corrosive environments in chemical and petrochemical industries.

High Strength and Excellent Dimensional Stability

Tungsten carbide bushings offer extremely high compressive strength and bending strength (typically 1800-4000 MPa), enabling them to withstand prolonged heavy loads. With a low coefficient of thermal expansion and outstanding dimensional stability, the inner bore can be precision ground and polished to a mirror-like surface finish, ensuring high-precision concentricity and sealing performance with mating components.

Material Composition and Performance Comparison

The table below provides a direct comparison of performance differences among various grades of tungsten carbide thin-wall bushings, as well as their distinction from conventional steel bushings:

Parameter Grade YG6 Grade YG8 Grade YG15 Conventional Steel Bushing
Primary Composition WC 94% + Co 6% WC 92% + Co 8% WC 85% + Co 15% Carbon steel / Alloy steel / Copper alloy
Hardness (HRA) ≥ 91 ≥ 90 ≥ 87 Approx. 50-60 (HRC)
Density (g/cm³) 14.7 - 15.1 14.5 - 14.9 13.9 - 14.2 Approx. 7.8
Bending Strength (MPa) ≥ 1,600 ≥ 1,600 ≥ 2,100 Varies by material, generally lower
Typical Application Characteristics High hardness, excellent wear resistance, suitable for general wear applications Slightly better toughness, suitable for applications with impact loads Superior toughness, ideal for high-impact, heavy-load applications Suitable for low-speed, low-load, and ordinary environments
Service Life (Multiples) Baseline (1×) Approx. 1.2× (better toughness) Approx. 1.3× (significant advantage under impact conditions) Approx. 1/5 - 1/10
Temperature Resistance Stable up to 500°C Stable up to 500°C Stable up to 500°C Generally ≤ 200°C, prone to oxidation and softening
Corrosion Resistance Excellent (resistant to acids, alkalis, seawater, etc.) Excellent Excellent Moderate (surface treatment required)

Data source: Product literature from multiple tungsten carbide material manufacturers

Typical Specifications and Customization Capabilities

Tungsten carbide thin-wall bushings support non-standard customization and can be manufactured according to customer drawings. The commonly customizable parameters are as follows:

Customization Parameter Customizable Range / Precision
Outer Diameter (OD) Up to Φ780 mm maximum
Inner Diameter (ID) Depends on outer diameter; ID tolerance can be precisely controlled to ±0.002 mm
Wall Thickness Thin-wall design, customizable based on operating conditions
Length 10 mm - 150 mm (further customization available)
Surface Finish As-sintered, precision ground, or mirror-polished
Geometric Configuration Straight bore, flanged, split type, grooved, stepped
Application Fields
  • Oil & Gas: Wear and corrosion-resistant components in petroleum machinery pumps, drilling tools, flow bushings, and TC (tungsten carbide) rings
  • Pump & Valve Industry: Shaft sleeves and seal assemblies in centrifugal pumps, submersible pumps, slurry pumps, and multi-stage pumps
  • Power Generation: Guide and support components in power plant circulating pumps and hydro-mechanical equipment
  • Mining & Construction Machinery: Wear-resistant sleeves under heavy-load, high-impact conditions
  • Chemical & Food Processing: Pump bushings in corrosive media environments such as acids and alkalis
Tungsten Carbide Thin-Wall Bushing product illustration showing precision cylindrical design and industrial application
